800M Mechanical Top Drive Water Well Drilling Rig

  • 800M Mechanical Top Drive Water Well Drilling Rig
  • 800M Mechanical Top Drive Water Well Drilling Rig
  • 800M Mechanical Top Drive Water Well Drilling Rig
  • 800M Mechanical Top Drive Water Well Drilling Rig

800M Mechanical Top Drive Water Well Drilling Rig

    Unit Price: 90000~150000 USD
    Min. Order: 1 Set/Sets
    Packaging: Standard
    Productivity: 100sets/year
    Brand: SINOTAI
    Transportation: Land,Ocean
    Place of Origin: China
    Supply Ability: 100 Set/Sets per Year
    Certificate: ISO
    HS Code: 8430
    Port: Tianjin

Product Description

Product Description

Truck Mounted 800M Water Drilling Rig

1. TSW-800 truck mounted drilling rig is designed by our engineers. It is a kind of truck mounted and rotary drilling rig.

2. The truck chassis adopts the special crane chassis of brand SINO TRUCK and the main drive system, the transfer case, gearbox, double-winch unit, Mud Pump, turntable, drilling tower, feed mechanism are set up on the chassis.

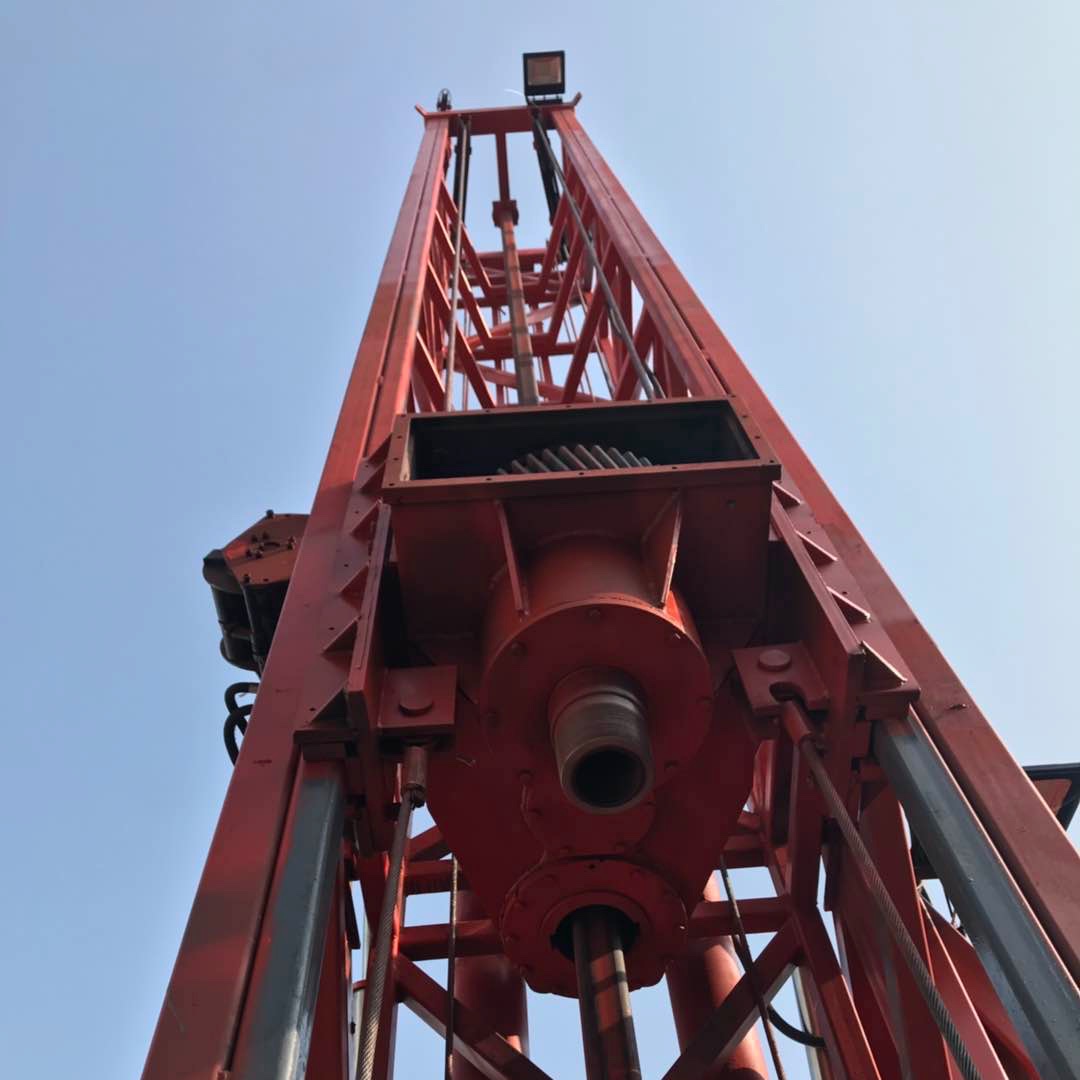

3. This rig is a top drive drilling rig with directional circulation. It is equipped with BW900/25 plunger pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

4. The power of drilling rig comes from the truck engine; the rig has distribute implement and hydraulic system.

Technical parameter
Drilling depth(M) 800
Drilling diameter(mm) 505
Speed of turntable(r/min) 26, 47, 77, 123, 191,29(reverse)
Torque of Power Head(N.m) 10000, 5530, 3376, 2113, 1361, 8965(reverse)
Pull up pull down sylinder pull down force(KN) 120
Pull up pull down sylinder pull up force(KN) 550
Drill tower load (KN) 700
The height of drilling tower (m) 12


Mud pump

Linder diameter(mm) 150/130
Stroke of piston (mm) 240
Theoretical flow (L / min) 1100
Max. pressure (Mpa) 5
Liner diameter (mm) 150/130
Pump speed (SPM) 77
Dimensions(m) 2*1*1.4
Truck chassis Drive form 6×4
Engine power(HP) 290
Electric generator Model STC-30KW
Rated power (kw) 30
Rated voltage(v) 380
Rated current(A) 72.2
Speed (r/min) 1500
Frequency(Hz) 75

Packaging & Shipping

800M Mechanical Top Drive Water Well Drilling Rig

800M Mechanical Top Drive Water Well Drilling Rig
Facotry Show

Our Company is one of the most reputed oil field equipment manufactures in China. Founded in 1958, the company gave of the FIRST oil field WORKOVER RIG in People's Republic of China. Through 60 years' development, the company is now ranked premium manufacture and top oil field vehicle supplier group that is able to achieve independent R&D, machinery process, parts assembly, high quality control and global customer service for manufacturing all kinds of oil field and mining service equipments.


800M Mechanical Top Drive Water Well Drilling Rig

Oversea Services

Our products include Workover rig, drilling rig, live well service rig, No Guyline well service rig, water well drilling rig, core drilling rig, sand washing truck, flushby rig, dewaxing unit as well as most types of major workover/drilling tools.With the products exported to U.S, Canada, Cuba, Colombia, Kasakztan, Russia, Venezuela, India, Oman, Saudi Arabia as well as oil field all over China, the company is now opening new branch in Houston, Texas in United States as well as one sales and service center in Mexico to extend our sales and service force abroad. We are trying our best to deliver the best qualified product and A++ level service to customer all over the world.

800M Mechanical Top Drive Water Well Drilling Rig
