Vertical Long Shaft Submerged Sewage Sump Pump

  • Vertical Long Shaft Submerged Sewage Sump Pump
  • Vertical Long Shaft Submerged Sewage Sump Pump
  • Vertical Long Shaft Submerged Sewage Sump Pump
  • Vertical Long Shaft Submerged Sewage Sump Pump

Vertical Long Shaft Submerged Sewage Sump Pump

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 60 Days
    Packaging: Wooden case or Frame steel Case
    Productivity: 1100000 sets/year
    Brand: GAOFENG
    Transportation: Ocean,Land,Air
    Place of Origin: Zigong,Sichuan,China
    Supply Ability: 110000 sets/month
    Certificate: ISO9001
    HS Code: 8413709990
    Port: Shanghai,Guangxi,Chengdu

Basic Info

Model No.: 150ZLX-45

Product Description

Vertical Long Shaft Submerged Sewage Sump Pump/Submerged Non-Clog Pump/Vertical Pit Pump/Submerged Pit Chemical Pump

Pumps for Coal Industry Brief introduction:
ZLF (ZLX,ZLJ)vertical submerged chemical pump adopts double bearing supporting to improve the reliability and stability of operation. A suction pump below 2 m length can be added to pump inlet according to the requirement of working liquid level. Various materials are available for different applications. ZLF (ZLX,ZLJ)vertical submerged chemical pump is suitable for conveying fluids without solids or fluids with a few suspending particles. It is widely used in industries of electric power,mining,cement,metallurgy,non-ferrous metals...

Parameters:
  1. Flow rate:Q=9~460 (m³/h)
  2. Total head:H=10~65 (m)
  3. Pump speed:n=1450rpm
  4. Fluid s.g.:γ ≤1.5
  5. Fluid temperature:T=0~80ºC
  6. Pump diameter:50~200mm
Features:
  1. A new type vertical submerged Centrifugal Chemical Pump conforms to standard JB/T8096-1998.
  2. Double bearing supporting to improve the reliability and stability of operation.
  3. Optimized hydraulic model to better adapt different applications.
  4. Several standard immersed depths of pump.A suction pipe can be added onto pump inlet flange when the pump immersed depth is longer than 1.5 m.
  5. Adopting low linear speed design for heavy slurry to extend pump life.
  6. Different anti-abrasive materials for various applications.
Structure:
  1. Single casing structure,pump casing is connected to the supporting tube,supporting tube is connected to bearing housing,bearing housing is connected to baseplate.
  2. Cylinder type bearing housing plus rolling bearings.
  3. Sealing ring as the shaft sealing,without any cooling water.
  4. A stir impeller is adopted beyond the impeller of ZLJ model to agitate slurry or particles in the fluids.
  5. Direct coupled Transmission.

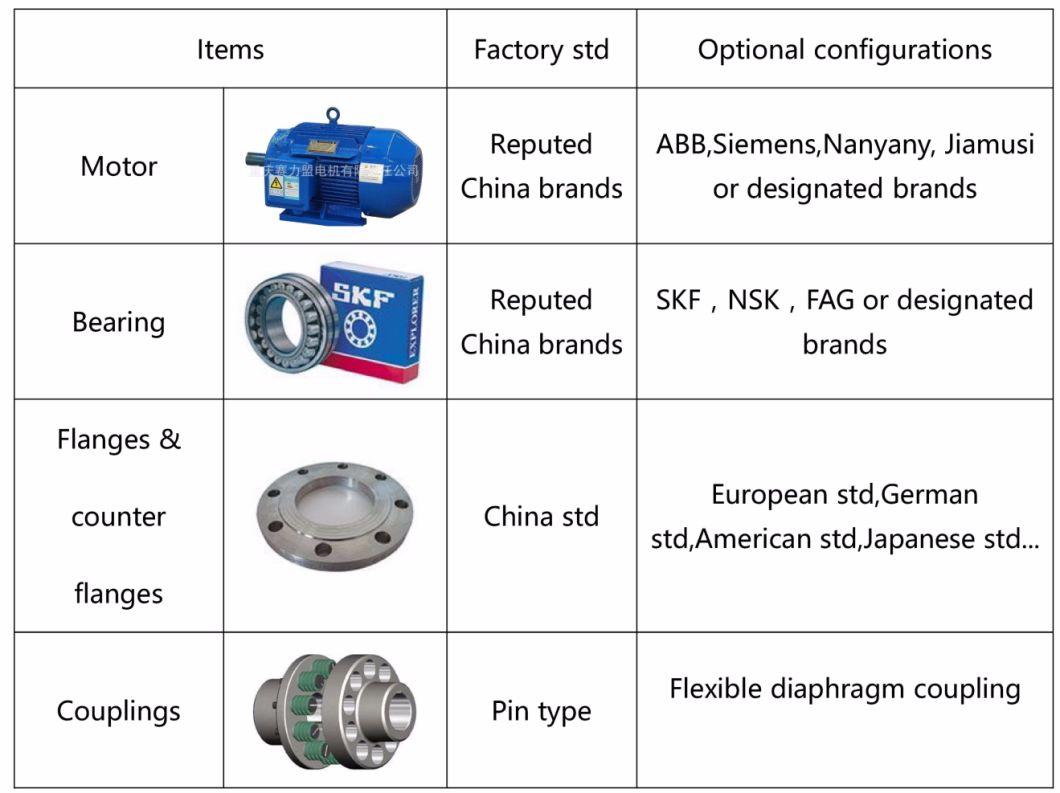

Configurations:Vertical Pit Pump
Applications:
  1. Sewage water conveying for industries of electric power,mining,cement,metallurgy and non-ferrous metals
  2. Fluid conveying for aluminum oxide process.
  3. Other slurry conveying of settling pond.

Packing & Delivery

Submerged Pit Chemical Pump


Sichuan Zigong Industrial Pump Co.,Ltd.

 Sichuan Zigong Industrial Pump Co., Ltd. (referred to as [ZG Pump") was founded in 1967. It is the earliest key enterprise in the production of impurity pumps and corrosion-resistant pumps. It is the largest industrial pump manufacturing based in Western China with the largest variety and specifications. The company's leading products include impurity pumps, chemical pumps, clean water pumps, hydraulic turbines and bottom-mounted propellers. There are 41 series and more than 600 varieties. The products serve petroleum, metallurgy, chemical, mining, textile and environmental protection, power and municipal facilities and other fields. The company is located in Zigong National High-tech Industrial Development Zone, covering an area of more than 400 acres. It is a pump manufacturer integrating research, production, sales and general contracting services to provide customers with the best solution for fluid transportation.
