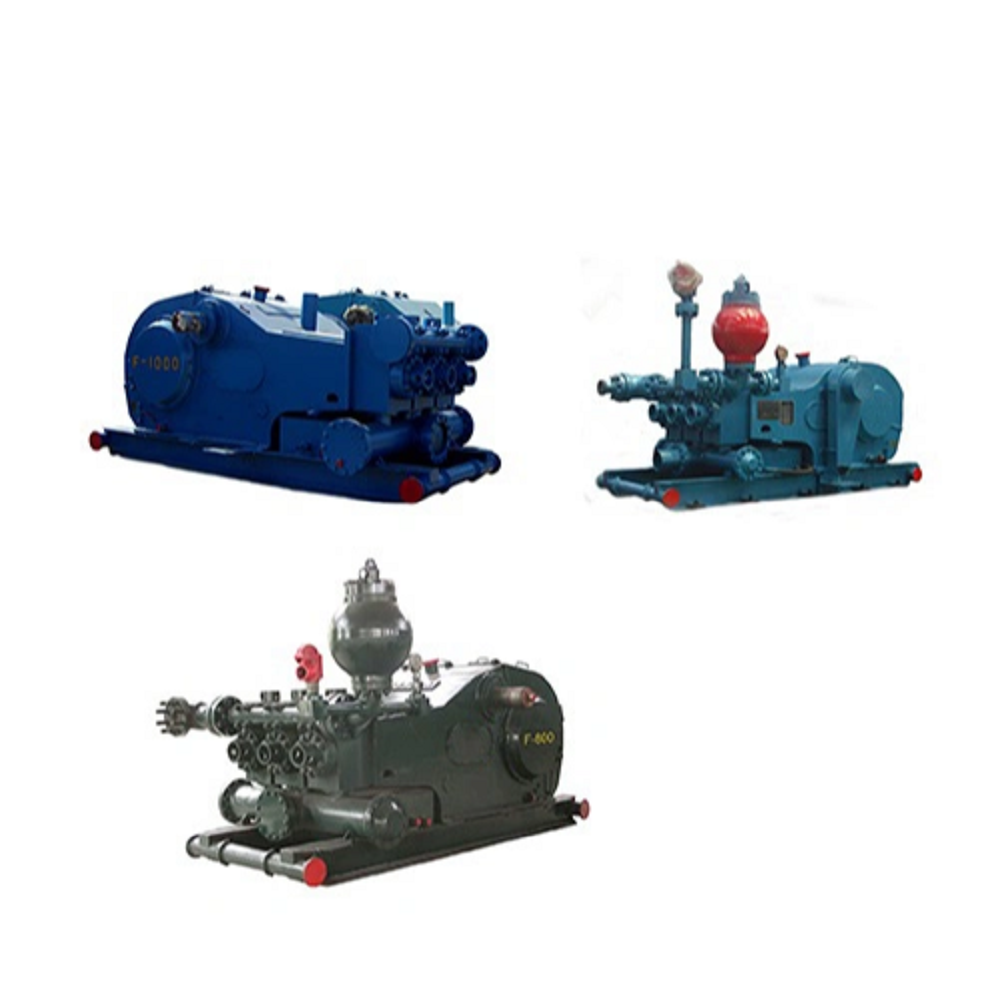

Oil Mud Pump G800 for Oil Field Equipment

  • Oil Mud Pump G800 for Oil Field Equipment
  • Oil Mud Pump G800 for Oil Field Equipment
  • Oil Mud Pump G800 for Oil Field Equipment

Oil Mud Pump G800 for Oil Field Equipment

    Unit Price: 31000~69000 USD
    Min. Order: 1 Set/Sets
    Packaging: Standard Export wood case
    Productivity: 4,000 pieces/year
    Brand: Simeno/ Jichai
    Transportation: Ocean,Land,Express
    Place of Origin: Jinan, China
    Supply Ability: 2,000 pieces/year
    Certificate: SGS,ISO
    HS Code: 8413400000
    Port: QingDao

Basic Info

Model No.: Mud Pump G800

Product Description

Our drilling Mud Pump supplies:

1) Mud pump such as EMSCO F, GD, China 3NB, BW series;
2) Pump for cementing and hydraulic fracturing in oil fields;
3) High pressure positive displacement pump for water, CO2, boilers, cement, sea water, etc.
4) Spare parts for the above mentioned pumps.

Perfect service system, installation, commissioning and after-sales service.

Our Generator Features:

1. Cooling System - Standard cooling package provides reliable operation at ambient temperatures up to 50 °C.

2. Housing - The attractive housing is specially designed to offer one of the quietest generators in its class. Durable powder-coated aluminum provides optimum corrosion protection. Smart design features a removable panel and service door, providing easy access for service and maintenance.
3. Fuel tank: offers an economical and flexible solution to meet the extensive specification requirements of diesel fuel tanks.

4. Warranty and service - backed by a comprehensive warranty.

5. Alternators - Various sizes of alternators offer selectable engine starting capability, 2/3 step windings with low reactance, low waveform distortion under non-linear loads and fault compensating short circuit capability. Industrial diesel engines provide reliable power, low emissions and fast response to load changes.

6. Control system - Provides full genset system integration, including remote automatic start/stop, precise frequency and voltage regulation, alarm and status message display, output metering.

Product Introduction

Oil Mud Pump 500 1600


Machine parameters

Model G500 G800 G1000 G1300 G1600
Power rating HP(kw) 500(373) 800(597) 1000(746) 1300(969) 1600(1193)
Stroke rating SPM 165 150 140 120 120
Stroke length (in/mm) 7.5"/190.5 9"/228.6 10"/254 12"/305 12"/305
Gear ratio 4.286 4.185 4.207 4.206 4.206
Inlet dia. (in/mm) 8"/203 10"/254 12"/305 12"/305 12"/305
Outlet dia. (in) 4" flange 5000psi 5-1/8" flange 5000psi 5-1/8" flange 5000psi 5-1/8" flange 5000psi 5-1/8" flange 5000psi
Valve API 5# API 6# API 6# API 7# API 7#
Max. liner (in/mm) 6-3/4"/170 6-3/4"/170 6-3/4"/170 7"/180 7"/180
Overall dimensionL*W*H (mm) 3658*2709*2231 3963*3025*2410 4267*3167*2580 4617*3260*2600 4615*3276*2688
Approx.weight (kg) 9770 14500 18790 24572 24791

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.


Why Choose USDescription 1
